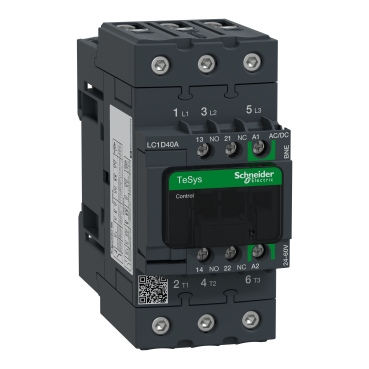

Description
| range | TeSys TeSys Deca |
|---|---|
| range of product | TeSys D TeSys Deca |
| product or component type | Contactor |
| device short name | LC1D |
| contactor application | Resistive load Motor control |
| utilisation category | AC-3 AC-1 AC-3e |
| poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25…400 Hz |
| [Ie] rated operational current | 60 A (at <60 °C) at <= 440 V AC-1 for power circuit 40 A (at <60 °C) at <= 440 V AC-3 for power circuit 40 A (at <60 °C) at <= 440 V AC-3e for power circuit |
| [Uc] control circuit voltage | 24…60 V AC 50/60 Hz 24…60 V DC |
| motor power kW | 11 kW at 220…230 V AC 50 Hz (AC-3) 18.5 kW at 380…400 V AC 50 Hz (AC-3) 22 kW at 415 V AC 50 Hz (AC-3) 22 kW at 440 V AC 50 Hz (AC-3) 22 kW at 500 V AC 50 Hz (AC-3) 30 kW at 660…690 V AC 50 Hz (AC-3) 11 kW at 220…230 V AC 50 Hz (AC-3e) 18.5 kW at 380…400 V AC 50 Hz (AC-3e) 22 kW at 415 V AC 50 Hz (AC-3e) 22 kW at 440 V AC 50 Hz (AC-3e) 22 kW at 500 V AC 50 Hz (AC-3e) 30 kW at 660…690 V AC 50 Hz (AC-3e) |
|---|---|
| motor power hp | 3 hp at 115 V AC 60 Hz for 1 phase motors 5 hp at 230/240 V AC 60 Hz for 1 phase motors 10 hp at 200/208 V AC 60 Hz for 3 phases motors 10 hp at 230/240 V AC 60 Hz for 3 phases motors 30 hp at 460/480 V AC 60 Hz for 3 phases motors 30 hp at 575/600 V AC 60 Hz for 3 phases motors |
| compatibility code | LC1D |
| pole contact composition | 3 NO |
| protective cover | With |
| [Ith] conventional free air thermal current | 60 A (at 60 °C) for power circuit 10 A (at 60 °C) for signalling circuit |
| Irms rated making capacity | 800 A at 440 V for power circuit conforming to IEC 60947 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| rated breaking capacity | 800 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 72 A 40 °C – 10 min for power circuit 165 A 40 °C – 1 min for power circuit 320 A 40 °C – 10 s for power circuit 720 A 40 °C – 1 s for power circuit 100 A – 1 s for signalling circuit 120 A – 500 ms for signalling circuit 140 A – 100 ms for signalling circuit |
| associated fuse rating | 80 A gG at <= 690 V coordination type 1 for power circuit 80 A gG at <= 690 V coordination type 2 for power circuit 10 A gG for signalling circuit conforming to IEC 60947-5-1 |
| average impedance | 1.5 mOhm – Ith 60 A 50 Hz for power circuit |
| power dissipation per pole | 5.4 W AC-1 2.4 W AC-3 2.4 W AC-3e |
| [Ui] rated insulation voltage | Power circuit: 690 V conforming to IEC 60947-4-1 Signalling circuit: 690 V conforming to IEC 60947-1 |
| overvoltage category | III |
| pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| mechanical durability | 6 Mcycles |
| control circuit type | AC/DC at 50/60 Hz AC/DC electronic |
| coil technology | Built-in bidirectional peak limiting |
| control circuit voltage limits | <= 0.1 Uc (-40…70 °C):drop-out AC/DC 0.85…1.1 Uc (-40…60 °C):operational AC 0.8…1.1 Uc (-40…60 °C):operational DC 1…1.1 Uc (60…70 °C):operational AC/DC |
| operating time | 55…65 ms closing 20…120 ms opening (date code >= 17221) 20…80 ms opening (date code >= 18011) |
| maximum operating rate | 3600 cyc/h 60 °C |
| tightening torque | Control circuit: 1.7 N.m – on screw clamp terminals – with screwdriver flat Ø 6 mm Control circuit: 1.7 N.m – on screw clamp terminals – with screwdriver Philips No 2 Power circuit: 8 N.m – on EverLink BTR screw connectors – cable 25…35 mm² hexagonal screw head 4 mm Power circuit: 5 N.m – on EverLink BTR screw connectors – cable 1…25 mm² hexagonal screw head 4 mm Power circuit: 2.5 N.m – on lugs-ring terminals – with screwdriver pozidriv No 2 M4 Control circuit: 1.7 N.m – on lugs-ring terminals – with screwdriver pozidriv No 2 M3.5 |
| auxiliary contact composition | 1 NO + 1 NC |
| auxiliary contacts type | Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1 |
| signalling circuit frequency | 25…400 Hz |
| minimum switching voltage | 17 V for signalling circuit |
| minimum switching current | 5 mA for signalling circuit |
| insulation resistance | > 10 MOhm for signalling circuit |
| non-overlap time | 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact |
| mounting support | Plate Rail |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
|---|---|
| climatic withstand | Conforming to IACS E10 conforming to IEC 60947-1 Annex Q category D |
| operating altitude | 0…3000 m |
| fire resistance | 850 °C conforming to IEC 60695-2-1 |
| flame retardance | V1 conforming to UL 94 |
| height | 122 mm |
| width | 55 mm |
| depth | 120 mm |
| net weight | 0.992 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.2 cm |
| Package 1 Width | 13.7 cm |
| Package 1 Length | 15.2 cm |
| Package 1 Weight | 1.05 kg |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 9.75 kg |
