Description

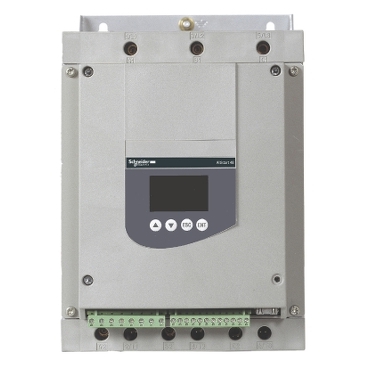

| range of product | Altistart 48 |
|---|---|
| product or component type | Soft starter |
| product destination | Asynchronous motors |
| product specific application | Heavy duty industry and pumps |
| device short name | ATS48 |
| utilisation category | AC-53A |
| Ue power supply voltage | 230…415 V – 15…10 % |
| power supply frequency | 50…60 Hz – 5…5 % |
| motor power kW | 55 kW at 400 V connection to the motor delta terminals for standard applications 55 kW at 400 V connection to the motor delta terminals for severe applications 15 kW at 230 V connection in the motor supply line for severe applications 18.5 kW at 230 V connection in the motor supply line for standard applications 30 kW at 230 V connection to the motor delta terminals for severe applications 30 kW at 400 V connection in the motor supply line for severe applications 37 kW at 230 V connection to the motor delta terminals for standard applications 37 kW at 400 V connection in the motor supply line for standard applications |
| device connection | To the motor delta terminals In the motor supply line |
|---|---|
| protection type | Phase failure: line Thermal protection: motor Thermal protection: starter |
| standards | EN/IEC 60947-4-2 |
| product certifications | DNV GOST UL NOM 117 CCC CSA C-Tick TCF SEPRO |
| marking | CE |
| discrete input number | 5 |
| discrete input type | PTC, 750 Ohm at 25 °C (Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm |
| discrete input logic | Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA |
| minimum switching current | 10 mA at 6 V DC for relay outputs |
| discrete output number | 2 |
| discrete output type | (LO1) logic output 0 V common configurable (LO2) logic output 0 V common configurable (R1) relay outputs fault relay NO (R2) relay outputs end of starting relay NO (R3) relay outputs motor powered NO |
| analogue output type | Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm |
| communication port protocol | Modbus |
| connector type | 1 RJ45 |
| communication data link | Serial |
| physical interface | RS485 multidrop |
| transmission rate | 4800, 9600 or 19200 bps |
| function available | External bypass (optional) |
| operating position | Vertical +/- 10 degree |
| height | 290 mm |
| width | 190 mm |
| depth | 235 mm |
| net weight | 8.3 kg |
| electromagnetic compatibility | Conducted and radiated emissions level A conforming to IEC 60947-4-2 Conducted and radiated emissions level B conforming to IEC 60947-4-2 Damped oscillating waves level 3 conforming to IEC 61000-4-12 Electrostatic discharge level 3 conforming to IEC 61000-4-2 Immunity to electrical transients level 4 conforming to IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 Voltage/current impulse level 3 conforming to IEC 61000-4-5 |
|---|---|
| relative humidity | 0…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
| ambient air temperature for operation | 40…60 °C (with current derating of 2 % per °C) -10…40 °C (without derating) |
| ambient air temperature for storage | -25…70 °C |
| operating altitude | <= 1000 m without derating > 1000…2000 m with current derating of 2.2 % per additional 100 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 36 cm |
| Package 1 Width | 30.5 cm |
| Package 1 Length | 39 cm |
| Package 1 Weight | 10.266 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 73.5 cm |
| Package 2 Width | 80 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 33.532 kg |
