Description

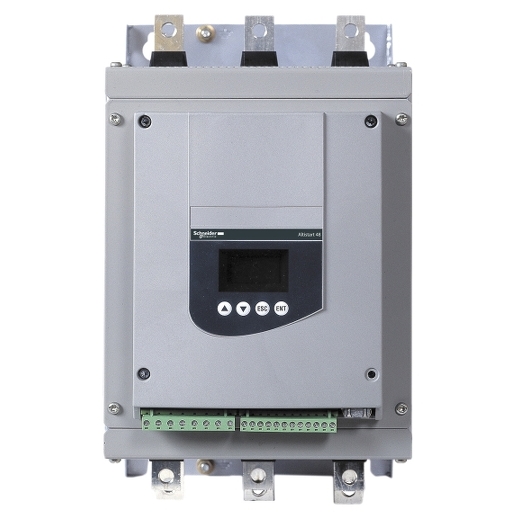

soft starter for asynchronous motor, ATS48, 131 A, 230..415 V, 30..110 KW
| range of product | Altistart 48 |
|---|---|
| product or component type | Soft starter |
| product destination | Asynchronous motors |
| product specific application | Heavy duty industry and pumps |
| device short name | ATS48 |
| power supply voltage | 208…690 V – 15…10 % |
| motor power kW | 110 kW at 660 V for standard applications 110 kW at 690 V for standard applications 30 kW at 230 V for severe applications 37 kW at 230 V for standard applications 55 kW at 400 V for severe applications 55 kW at 440 V for severe applications 75 kW at 400 V for standard applications 75 kW at 440 V for standard applications 75 kW at 500 V for severe applications 75 kW at 525 V for severe applications 90 kW at 500 V for standard applications 90 kW at 525 V for standard applications 90 kW at 660 V for severe applications 90 kW at 690 V for severe applications |
| motor power hp | 100 hp at 460 V for standard applications 100 hp at 575 V for severe applications 125 hp at 575 V for standard applications 30 hp at 208 V for severe applications 40 hp at 208 V for standard applications 40 hp at 230 V for severe applications 50 hp at 230 V for standard applications 75 hp at 460 V for severe applications |
| power dissipation in W | 306 W for standard applications 391 W for standard applications |
| utilisation category | AC-53A |
| type of start | Start with torque control (current limited to 5 In) |
| Icl nominal current | 140 A for connection in the motor supply line for severe applications 140 A for connection in the motor supply line for standard applications |
| assembly style | With heat sink |
|---|---|
| function available | External bypass (optional) |
| power supply frequency | 50…60 Hz – 5…5 % |
| power supply frequency limits | 47.5…63 Hz |
| device connection | In the motor supply line |
| discrete output number | 2 |
| discrete output type | (LO1) logic output 0 V common configurable (LO2) logic output 0 V common configurable (R1) relay outputs fault relay NO (R2) relay outputs end of starting relay NO (R3) relay outputs motor powered NO |
| output absolute accuracy precision | +/- 5 % |
| minimum switching current | 10 mA at 6 V DC for relay outputs |
| maximum switching current | Logic output 0.2 A at 30 V DC Relay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 ms Relay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms |
| discrete input number | 5 |
| discrete input type | PTC, 750 Ohm at 25 °C (Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm |
| discrete input voltage | 24 V <= 30 V |
| discrete input logic | Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA |
| starting current | 0.4…1.3 Icl adjustable |
| analogue output type | Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm |
| communication port protocol | Modbus |
| connector type | 1 RJ45 |
| communication data link | Serial |
| physical interface | RS485 multidrop |
| transmission rate | 4800, 9600 or 19200 bps |
| max nodes number | 31 |
| protection type | Phase failure: line Thermal protection: motor Thermal protection: starter |
| marking | CE |
| operating position | Vertical +/- 10 degree |
| height | 340 mm |
| width | 200 mm |
| depth | 265 mm |
| net weight | 12.4 kg |
| Motor power range AC-3 | 30…50 kW at 200…240 V 3 phases 55…100 kW at 380…440 V 3 phases 55…100 kW at 480…500 V 3 phases |
| motor starter type | Soft starter |
| electromagnetic compatibility | Conducted and radiated emissions level A conforming to IEC 60947-4-2 Conducted and radiated emissions level B conforming to IEC 60947-4-2 Damped oscillating waves level 3 conforming to IEC 61000-4-12 Electrostatic discharge level 3 conforming to IEC 61000-4-2 Immunity to electrical transients level 4 conforming to IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 Voltage/current impulse level 3 conforming to IEC 61000-4-5 |
|---|---|
| standards | EN/IEC 60947-4-2 |
| product certifications | UL C-Tick CSA TCF CCC NOM 117 DNV GOST SEPRO |
| noise level | 50 dB |
| relative humidity | 0…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
| ambient air temperature for operation | 40…60 °C (with current derating of 2 % per °C) -10…40 °C (without derating) |
| ambient air temperature for storage | -25…70 °C |
| operating altitude | <= 1000 m without derating > 1000…2000 m with current derating of 2.2 % per additional 100 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 14.892 kg |
| Package 1 Height | 34 cm |
| Package 1 width | 43 cm |
| Package 1 Length | 46 cm |
| Sustainable offer status | Green Premium product |
|---|---|
