Description

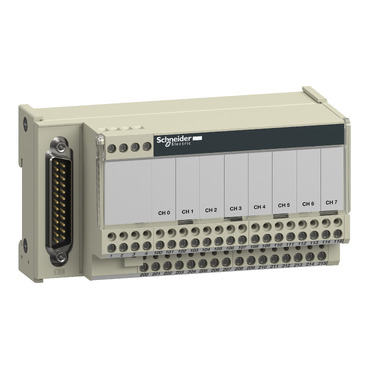

| Range of product | Modicon ABE7 |
|---|---|
| Product or component type | Connection sub-base for counter and analogue channels |
| Number of channels | 8 |
| Connections – terminals | Screw type terminals, 1 x 0.09…1 x 1.5 mm² (AWG 28…AWG 16) flexible with cable end Screw type terminals, 1 x 0.14…1 x 2.5 mm² (AWG 26…AWG 12) solid Screw type terminals, 1 x 0.14…1 x 2.5 mm² (AWG 26…AWG 14) flexible without cable end Screw type terminals, 2 x 0.09…2 x 0.75 mm² (AWG 28…AWG 20) flexible with cable end Screw type terminals, 2 x 0.2…2 x 2.5 mm² (AWG 24…AWG 14) solid |
| Function of module | Analogue input current, compatible with Premium Analogue input voltage, compatible with Premium Pt 100, compatible with Premium |
|---|---|
| Connection to PLC | SUB-D 25 |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Product weight | 0.29 kg |
| Product certifications | GL DNV UL CSA EAC |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TC |
| Resistance to incandescent wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2 8 kV (air) level 3 conforming to IEC 61000-4-2 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | 0…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.100 cm |
| Package 1 Width | 8.200 cm |
| Package 1 Length | 13.600 cm |
| Package 1 Weight | 301.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 27 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 8.683 kg |
