Description

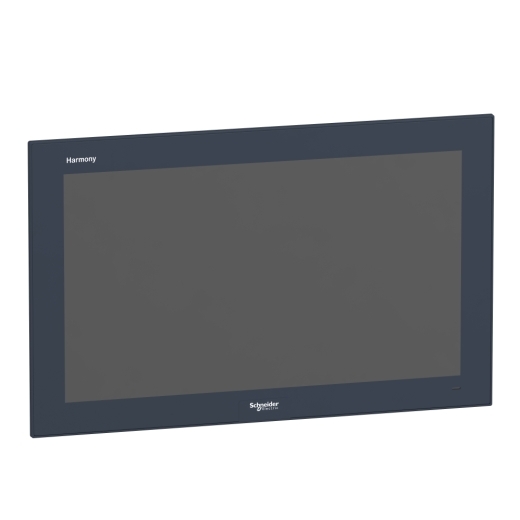

Flat screen, Harmony Modular iPC, Display PC Wide 22” multi touch for HMIBM
| range of product | Harmony Modular iPC |
|---|---|
| product or component type | Flat screen |
| terminal type | Touchscreen display |
| device mounting | Flush |
|---|---|
| local signalling | Status LED |
| view angle horizontal x vertical | 150 x 150° |
| contrast ratio | 500:1 |
| pixel resolution | 1024 x 1024 |
| touchscreen resolution | 4096 x 4096 |
| function available | Operate with water on screen |
| [Us] rated supply voltage | 24 V DC power supply 100…240 V AC power supply 47…63 Hz |
| supply voltage limits | 18…36 V DC |
| power consumption in W | 50.7 W (typical) with Box PC HMIBMP 64.85 W (maximum) with Box PC HMIBMP 45.2 W (typical) with Box PC HMIBMU 59.85 W (maximum) with Box PC HMIBMU |
| display size | 21.5 inch |
| display type | LED Colour TFT LCD |
| display resolution | 1920 x 1080 pixels full HD |
| display colour | 16777216 colors |
| luminance | 300 cd/m² |
| backlight lifespan | 50000 hours at 25 °C |
| touch panel | Multi-touch projected capactive technology (PCT) |
| type of installation | Indoor installation |
| inrush current | 8.9 A |
| width | 558.4 mm |
| height | 349.8 mm |
| depth | 28 mm enclosure: 7 mm |
| net weight | 6.6 kg |
| IP degree of protection | IP66 |
|---|---|
| NEMA degree of protection | NEMA 4X |
| standards | UL 60950 CSA C22.2 No 60950 |
| product certifications | CCC C-Tick EAC |
| ambient air temperature for operation | 0…55 °C |
| ambient air temperature for storage | -30…70 °C |
| pollution degree | 2 |
| relative humidity | 10…95 % non-condensing |
| operating altitude | 2000 m |
| vibration resistance | 1 gn (f = 5…500 Hz) HDD 2 gn (f = 5…500 Hz) SSD 2 gn (f = 5…500 Hz) Cfast card |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 6.6 kg |
| Package 1 Height | 2.8 cm |
| Package 1 width | 35 cm |
| Package 1 Length | 55.8 cm |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 1 |
| Package 2 Weight | 9.2 kg |
| Package 2 Height | 58.5 cm |
| Package 2 width | 22 cm |
| Package 2 Length | 73 cm |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 5 |
| Package 3 Weight | 51 kg |
| Package 3 Height | 79 cm |
| Package 3 width | 80 cm |
| Package 3 Length | 120 cm |
| REACh Regulation | REACh Declaration |
|---|---|
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation | China RoHS declaration |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
