Description

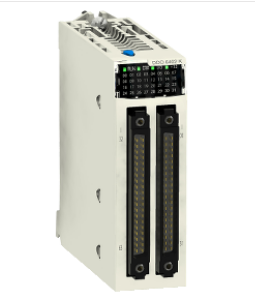

Discrete output module X80 – 64 outputs – 24 V DC positive BMXDDO6402K
| range of product |
Modicon X80
|
|
|---|---|---|
| product or component type |
Discrete output module
|
|
| discrete output number |
64 conforming to EN/IEC 61131-2
|
|
| discrete output type |
Solid state
|
|
| discrete output logic |
Positive
|
|
| discrete output voltage |
24 V 19…30 V DC
|
|
| discrete output current |
0.1 A
|
| current per channel |
0.125 A
|
|
|---|---|---|
| maximum current per module |
6.4 A
|
|
| insulation resistance |
> 10 MOhm 500 V DC
|
|
| power dissipation in W |
6.85 W
|
|
| response time on output |
1.2 ms
|
|
| paralleling of outputs |
Yes : 3 maximum
|
|
| typical current consumption |
160 mA at 3.3 V DC
|
|
| MTBF reliability |
159924 H
|
|
| protection type |
reverse polarity protection
External short-circuit protection overload protection overvoltage protection |
|
| output overload protection |
With current limiter
With electronic circuit breaker 0.125 A < Id < 0.185 A |
|
| output overvoltage protection |
With transil diode
|
|
| output short-circuit protection |
With 2 A external fuse
|
|
| reverse polarity protection |
Reverse mounted diode
|
|
| voltage detection threshold |
< 14 V DC preactuator fault
> 18 V DC preactuator at state 0 |
|
| maximum tungsten load |
1.2 W
|
|
| switching frequency |
0.5/LI² Hz
|
|
| maximum overload time |
15 ms
|
|
| load impedance ohmic |
>= 220 Ohm
|
|
| status LED |
1 LED (green)+32 channels indicator
1 LED (green)module operating (RUN) 1 LED per channel (green)channel diagnostic 1 LED (red)module error (ERR) 1 LED (red)module I/O |
|
| net weight |
0.15 kg
|
| IP degree of protection |
IP20
|
|
|---|---|---|
| directives |
2014/35/EU – low voltage directive
2014/30/EU – electromagnetic compatibility |
|
| dielectric strength |
1500 V AC at 50/60 Hz 1 minute, output/ground
1500 V AC at 50/60 Hz 1 minute, output/internal logic 500 V DC 1 minute, between group of channels |
|
| vibration resistance |
3 gn
|
|
| shock resistance |
30 gn
|
|
| ambient air temperature for storage |
-40…85 °C
|
|
| ambient air temperature for operation |
0…60 °C
|
|
| relative humidity |
5…95 % at 55 °C without condensation
|
|
| operating altitude |
0…2000 m
2000…5000 m with derating factor |
| Package 1 Weight |
0.194 kg
|
|
|---|---|---|
| Package 1 Height |
5.600 cm
|
|
| Package 1 width |
11.200 cm
|
|
| Package 1 Length |
11.600 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation |
REACh Declaration
|
|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
|
|
| Environmental Disclosure |
Product Environmental Profile
|
|
| Circularity Profile |
End of Life Information
|
|
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
